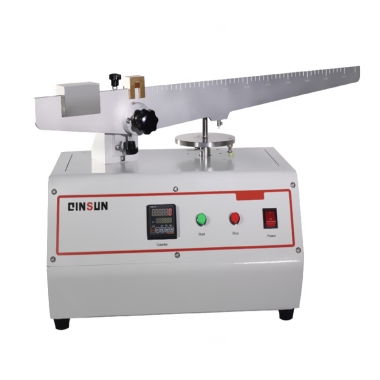

Scratch Tester

The painted or uncoated surface need use a brush, sponge, scouring pad, sandpaper or other methods to test the resistance to scrub. The friction test can be carried out by adding a friction agent or a cleaning agent in a wet scrubbing manner. It is usually used in interior wall coatings, floor tiles, shower baths, and furniture.

Byk-gardner scrub abrasion tester Standards

ASTM D1792;ASTM D2198;ASTM D2486;ASTM 3206;ASTM D3207;

ASTM D3450;ASTM D4213;ASTM D4488;ASTM D4828;ISO11998;DIN 53778;DIN 13300;Canadian Government Regulation 26-GP-3a; Pennsylvania Federal Code W-4; Federal Code P-C-431a;P-D-220A;P-R-201b;P-W-155;T-1279D;TT-P-18;TT-P-22.TT-P-23a;TT-P-26a;TT-P-29B;TT-P-30;TT-P-47a;TT-P-51d;TT-P-88a;TT-P-508; FTMS 141A; FTMS 6141.;FTMS 6142; US Military Code MIL-C-3004.MIL-C-46057. MIL-E-11237MIL-P-13340A, MIL-P-15422B; US Navy Code 512C20C; Rock Island Arsenal Code RIX-268

Instrument features:

1. Using chain drive mechanism to ensure long-term reliable operation,

2. Make a uniform reciprocating linear motion by certain progress; with strong reproducibility;

3. 7-inch touch screen display, easy to operate; compact design

The main parameters:

The number of reciprocating: up to 100.000;

Scrub speed: 6 to 60 reciprocating / minute;

Scrub test arm can be placed up to 3 brushes or cushion base, improve test efficiency;

Test arm maximum load 4kg (8.8lbs);

Power supply: AC220v 50Hz

The stroke length is 28cm

Technical Specifications:

Stroke Speed: 1-60 cycles/min

Stroke Length: 20-300 mm / 0.39-11.81 in

Pump Flow: 0.0-3.0 ml/min / 0.0-0.79 gph

Maximum Test Panel Length: 350 mm / 13.78 in

Maximum Test Panel Thickness: 35 mm / 1.38 in

Maximum Test Panel Width: 70 mm / 2.76 in

Power Supply: 100-240 VAC / 50-60 Hz

Dimensions: 490 x 640 x 235 mm

Pump Height: 530 mm

Weight: 30-35 kg

Power Supply: 100-240 VAC / 50-60 Hz

Power: Up to 90 W

Display: 480 x 272 pixel TFT panel

Controls: 5-button navigation button (mouse and keyboard optional)
