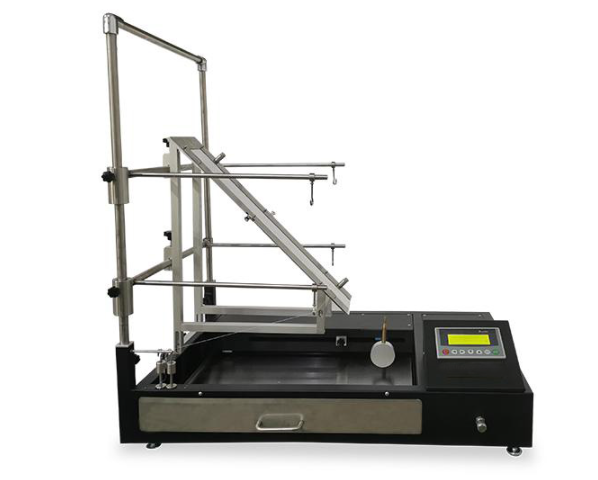

Fabric Flame Retardant Tester
Category：Flammability Tester
Introduction
The instrument is used to measure the intensity and speed of burning of flammable textiles when ignited.
Product Introduction
Precision Fire Safety Evaluation
Our Fabric Flame Retardant Tester delivers laboratory-grade fire resistance analysis for textiles, upholstery, and industrial fabrics. Engineered to ASTM D6413 and ISO 1210 standards, it quantifies critical safety parameters including afterflame duration, char length, and melt-drip behavior with ±0.1s timing precision.
Intelligent Testing Capabilities
Automatic ignition/exhaust sequencing with gas flow monitoring
Digital flame application control (5-180mm adjustable height)
Real-time thermal imaging integration (optional)
Self-calibrating sensors for repeatable results
Industry Applications
Essential for quality control in:
Protective workwear manufacturing
Automotive/aerospace interior materials
Home furnishings and drapery compliance
Military specification validation
Safety-Driven Technology
Patented gas cutoff systems and explosion-resistant viewports ensure operator protection during high-temperature testing (up to 1.000°C exposure). Configurable with AI analysis software for predictive flammability ratings.
Standards
GB/T 14644-2014 Textiles-Burning behaviour-45°test determination of flame spread rate
CFR 1610 Standard for the flammability of clothing textiles
Technical Parameters
| Items | Parameters |
|---|---|
| Burning time range | 0 ~ 99.99s; resolution: 0.01s |
| Ignition time | 1s, resolution: 0.01s |
| Igniter Caliber | 41/2 syringe needle |
| Sample size | 150mm × 50mm |
| Sample clip size | Shape -205mm × 76mm; inner frame -130mm × 40mm |
| Flame spray the sample from the midpoint to the mark line distance | 127mm |
| Flame height | 16mm |
