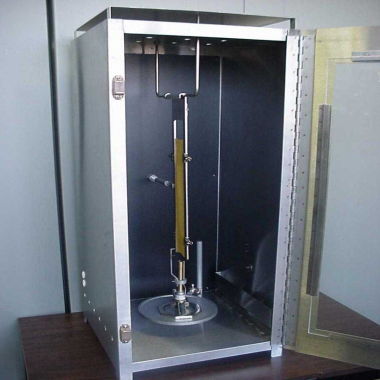

fabric flame retardant performance test machine is mainly used to determine the textile flame, smoldering and carbonization tendencies. Suitable for flame-retardant woven fabrics, knitted fabrics, coated products, quilted products.

Scope of application:

fabric flame retardant performance test machine is mainly used to determine the textile flame, smoldering and carbonization tendencies. Suitable for flame-retardant woven fabrics, knitted fabrics, coated products, quilted products.

Main technical indicators:

1. Timing range 0.1s ~ 999.9s

2. Can be carried out vertical method, horizontal method, 45 ° A method, 45 ° Appendix A method, small 45 °, quilted products such as the determination of flame retardant properties.

3. Timing accuracy of 0.1s

4. Test flame height: adjustable

5. Burning box outer box size: 650mm × 650mm × 860mm

6. Burning box inside the box size: 600mm × 640mm × 740mm

7. Automatic output of exhaust fan power supply AC220V 3A

8. Power: AC220V ± 10% 50Hz

9. Power: 40W (excluding exhaust fan)

10. Net weight: 40Kg

Standards :

GB / T5455. FZ / 01028. GB / T14645. GB / T14644. FZ / T81005 and so on.

Features:

1. Stainless steel test box, surface drawing, with glass observation window;

2. Stainless steel support frame;

3. Stainless steel specimen frame;

4. Flame height adjustable (rotor flowmeter adjustment or burner adjustment);

5. The use of special aluminum panels;

6. With imported watches, metal keys;

7. A variety of different samples can be used interchangeably;

8. With commissioning dedicated air supply, with special conversion connector;

9. Inside the box is equipped with high temperature fire protection device tube.
