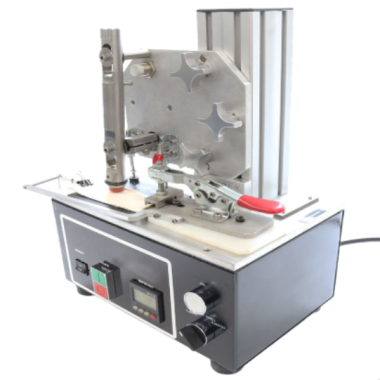

Finger Tip Abrasion Tester
Category：Interior Material Tester
Introduction
The Finger Tip Abrasion Tester is designed to simulate human fingertip contact on a test specimen by applying a defined load, stroke, and speed. It evaluates the abrasion resistance and durability of surfaces subjected to frequent tactile interaction, such as control panels, touch surfaces, switches, and coatings.
Application
The applied load is set using dead weights, and the scrub (abrading) distance is adjustable from 1 to 4 mm, allowing precise adaptation to different test materials and geometries. This tester supports a wide range of applications, including mechanical abrasion and chemo-mechanical testing when liquids such as artificial sweat, hydraulic oil, or cleaning solutions are applied to the test fabric.
Standard
(1) IEC 68-2-70 – Mechanical durability of materials via fingertip/hand simulation
(2) GB/T 2423 series – Environmental testing of electrical and mechanical durability
(3) IEC 60068-2-70 – Fingertip/hand friction durability testing
(4) IEC 60068-2-72 – Surface wear and operational lifetime testing of materials
(5) ISO 11998 – Coating scrub and abrasion resistance methods
(6) ISO 2813 – Surface state and gloss evaluation methods
Technical Specifications
| Feature | Specification |
|---|---|
| Test Method | Simulates fingertip contact abrasion |
| Standard Compliance | IEC 68-2-70 |
| Test Load | Variable from 1 N to 100 N (set with dead weights) |
| Stroke (Scrub Distance) | Adjustable from 1 to 4 mm |
| Test Pistons | 10 mm and 20 mm diameter silicone test pistons |
| Cycle Counter | Pre-set digital counter |
| Operation Modes | Mechanical abrasion and chemo-mechanical abrasion |
| Dimensions (Approx.) | 100 × 80 × 60 cm |
| Power Supply | 110 V / 60 Hz |
| Construction | Precision-machined components for repeatable operation |
| Control Interface | Manual adjustment and digital cycle control |
Features
Realistic Human Contact Simulation: Accurately replicates fingertip abrasion under controlled load and stroke conditions.
Adjustable Parameters: Easily modify test load and stroke to suit different surface materials and textures.
Chemo-Mechanical Capability: Enables testing with liquids such as sweat or cleaning agents for enhanced realism.
Durable & Reliable Design: Built from precision aluminum and stainless steel components.
User-Friendly Controls: Simple setup with pre-set counter and intuitive adjustments.
Comprehensive Documentation: Supplied with operation manual, maintenance schedule, and replacement parts list.
Maintenance Information
Keep fingertip heads and clamps clean to avoid contamination.
Inspect moving parts and mechanism for wear regularly.
Replace silicone fingertips or friction pads when worn.
Check and calibrate load weights and counter periodically.
Store in a clean, dry environment to prevent corrosion or damage.
FAQ
1.What is this product?
It is a fingertip abrasion tester designed to evaluate the wear resistance and surface durability of materials under repeated human-finger contact.
2.What is this product used for?
You use it to test consumer electronics, automotive interiors, appliances, medical devices, and industrial equipment surfaces for abrasion and surface integrity.
3.How does this product work?
The fingertip head repeatedly rubs against the material surface under a controlled load, stroke, and speed. Chemical-mechanical tests add liquid media to simulate real-life conditions.
4.Why is this product important?
It ensures materials and coatings maintain appearance, functionality, and surface integrity under prolonged use, helping improve product durability and reliability.
5.Which industries is this product suitable for?
Electronics, automotive, household appliances, medical devices, and industrial equipment manufacturers, as well as R&D and quality control labs.
