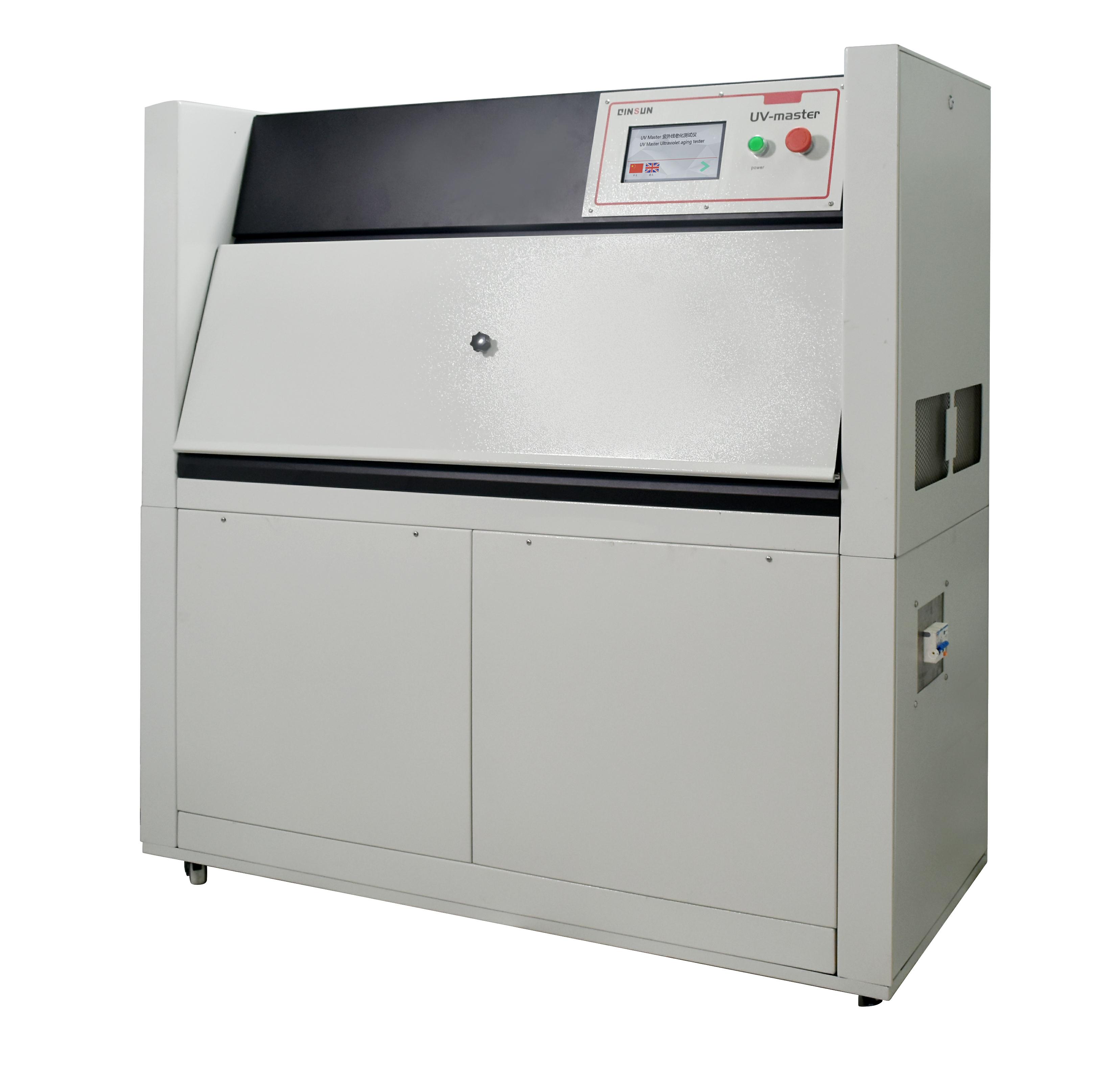

PV Module Testing Equipment – UV Aging Test Chamber
Category：UV Aging Test Chamber
Introduction
The UV Aging Test Chamber for photovoltaic (PV) modules is designed to simulate long-term exposure to outdoor sunlight, specifically the destructive effects of ultraviolet (UV) radiation. By replicating months or years of outdoor UV aging in just a few days or weeks, this chamber allows for rapid evaluation of material resistance and durability. It complies with international testing standards such as GB, ISO, and ASTM.
Application
This chamber is primarily used to assess the UV aging resistance of various PV module components, including:
Encapsulant
Backsheet
Glass
Junction Box Materials
It is suitable for use in research laboratories, PV module manufacturers, and quality control facilities, where it plays a crucial role in ensuring the longevity and performance of solar modules.
Standards
The UV Aging Test Chamber is designed to comply with international standards for UV aging testing, such as:
ISO 9001 (Quality management)
ASTM G154 (Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Nonmetallic Materials)
IEC 61215 (Test for the performance of PV modules)
Note: Specific test parameters and conditions are set according to the standard being followed.
Technical Parameters
| Item | Specification |
|---|---|
| Lamp Brand | Osram |
| Lamp Lifespan | Approximately 2000 hours |
| Single Lamp Power | Approximately 2 kW |
| UV Wavelength Range | UVA 320–400 nm, UVB 280–320 nm |
| UVB Relative Energy | 3–10% of total UV energy per lamp |
| Irradiance | 150–250 W/m² (280–400 nm) |
| Irradiance Uniformity | Better than ±15% |
| Sample Surface Temperature | 60 ± 2 °C |
| Internal Chamber Temperature | 30–90 °C, adjustable |
| Temperature Resolution | 0.1 °C |
| Ozone Generation | Negligible |
| Illumination Method | Top illumination |
| Irradiance & Irradiation Dose Notes | UVB (280–320 nm) accounts for 3–10% of total irradiance in the 280–400 nm range according to IEC 61215-2 |
Product Features
High-Quality Lamps: Utilizes Osram lamps with a lifespan of up to 2000 hours, providing long-lasting, efficient UV radiation.
Wide Irradiation Area: The chamber covers an area of 2800 mm × 2800 mm, allowing for larger samples and reducing the number of lamps required.
Energy Efficiency: Achieves large irradiation areas with fewer lamps, lowering operational costs and extending lamp life.
UV Blocking & Insulated Construction: The cabinet is made of UV-blocking, insulated, and environmentally-friendly materials.
Dual-Door Design: Separates the lamp system and cooling system in the upper compartment from the sample platform in the lower compartment, ensuring safety and efficient operation.
Precise Monitoring: Equipped with fiber sensors for UVA and UVB for precise measurement of UV exposure.
Real-Time Data Monitoring: The chamber features an industrial touch screen and PLC controller that automatically controls temperature, irradiance, irradiation dose, and test duration.
Wind-Cooled Temperature Control: Maintains sample surface temperature at 60 ± 2 °C, with internal chamber temperature adjustable from 30°C to 90°C.
Safety Features: The system automatically turns off lamps and sounds an alarm when temperature limits are exceeded.
Data Export: Test data, including temperature and irradiance curves, can be stored and exported for comprehensive reporting.
Real-Time Monitoring: Provides real-time temperature and irradiance curves, ensuring that results are continuously monitored and can be analyzed instantly.
Accessories
Main Unit: UV Aging Test Chamber with a built-in control system.
Lamps: High-performance Osram UV lamps for optimal testing results.
Fiber Sensors: Dedicated UVA and UVB fiber sensors for precise data collection.
Industrial Touch Screen: For real-time monitoring and graphical display.
PLC Programmable Controller: Automatically controls test parameters.
Backup Files: Includes essential files for system operation and troubleshooting.
User Manual: Comprehensive guide for easy operation and setup.
FAQ
1.What is this product?
It is a UV aging test chamber for photovoltaic modules to simulate long-term sunlight exposure.
2.What is this product used for?
You use it to evaluate UV degradation resistance and material stability of PV components under accelerated aging conditions.
3.What is the working principle of this product?
The chamber exposes samples to controlled UVA and UVB light while maintaining precise temperature and irradiance conditions to replicate outdoor aging effects.
4.Why is this product important?
It allows you to predict PV module durability, reduce field failures, and optimize materials for long-term performance.
5.What industries is this product suitable for?
PV module manufacturing, solar material R&D, environmental simulation laboratories, and quality control in renewable energy production.
