Manikin System

The 5th Percentile Female SAE Butt Form is meticulously derived from the NHTSA Hybrid III Fifth Percentile Female Anthropomorphic Test Device (ATD), ensuring a high degree of accuracy for testing applications. Constructed from cast aluminum, this form strikes an optimal balance between lightweight design and robust durability, making it suitable for a variety of testing environments.

Ready for immediate use, the Butt Form features four M10x1.5 mounting holes, complemented by a precisely CNC machined mounting surface. This attention to detail facilitates seamless integration with various testing apparatuses. The form is available as a standalone unit, with options for custom mounting brackets and holes, catering to specific needs related to Fatigue, Indentation Force Deflection (IFD)/Universal Testing Machine (UTM), Ingress/Egress, or Jounce Testers.

For those requiring tailored solutions, custom mounting brackets can be requested, ensuring that the form meets the unique specifications of your testing setup. This adaptability underscores the form’s versatility, making it an invaluable asset for researchers and engineers alike.

Aerospace Body Block

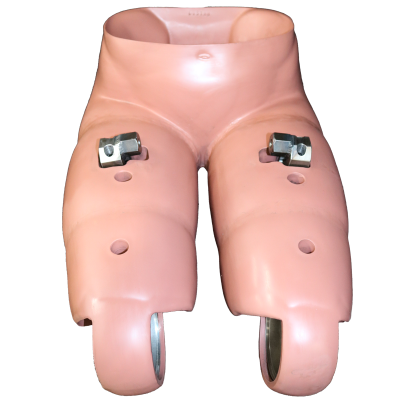

Anthropomorphic Test Device Dummy – Pelvis and Legs

H2 Anthropomorphic Test Device Dummy – Pelvis and legs is the perfect form for ingress / egress seat testing. It has all closed joints and two lower thigh hard mounting points for externally activating the legs. And, it is available for either rental or purchase from our inventory.

We can also repair and/or rebuild your existing manikin. We also offer a trade-in credit for your old manikin once the soft joints have split apart or the internal foam has broken down.

These Manikins need to be periodically tested for overuse and fatigue.

Features of the Anthropomorphic Test Device Dummy – Pelvis and Legs:

Humanetics or Jasti brand models available

All Joints Closed and Reinforced

Hard Mounting Points for Leg Activation

Optional Knee Bar is Also Available

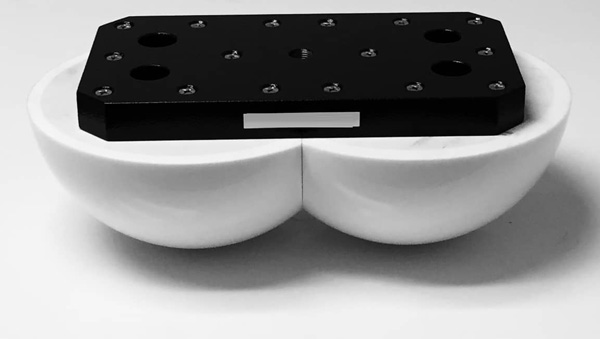

Cornell Butt Form for Mattress Testing

Our Cornell Butt Form for Mattress Testing is designed to meet the requirements of specification ASTM F1566 for bedding tests.

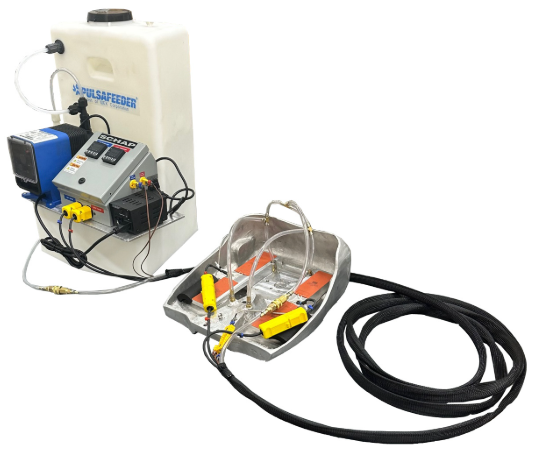

JM50/J826 Butt Form with Heat and Sweat Function (Ford ST-0809)

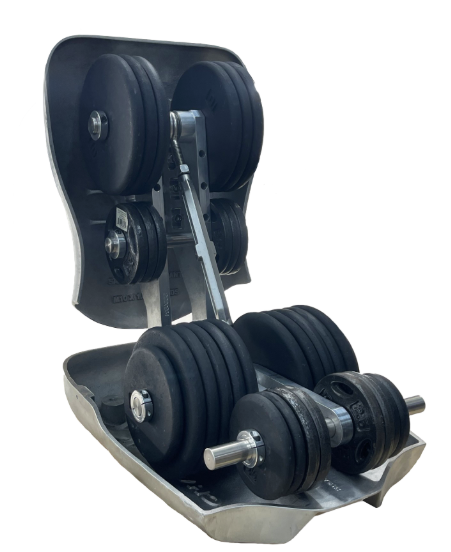

JSAE Adjustable Ballast Dummy

JSAE Adjustable Ballast Dummy is constructed of one SAE JSAE Back Form and one JSAE Butt Form, with a pivot joint at the H-point.

The adjustable angle is controlled with a turnbuckle. The H-point pin and turnbuckle pin are removable. The bottom fixture and torso centerline have multiple shaft locations for additional weights to be added.

Adjustable Ballast Dummy Features:

Mechanical components are constructed of non-corrosive Aluminum and Solid Stainless Steel

Pivoting fixture utilizes turnbuckle to adjust angle

Base weight of fixture is approximately 65 lbs.

Five weight shafts allow for adding various weight configurations

Locking clamp collars on weight shafts hold weights in place during testing

Available in bright polished finish

Optional perimeter retaining clamps for canvas form covers.

Nissan Condition “B” Butt Form

The Nissan Condition “B” Butt Form is made of cast aluminum and can be provided with mounting holes, or fixtures to meet specific testing needs. This form is suitable for use with our Jounce machines (with, or without squirm), IFD (UTM) machines, or other applications.

SAE J1454 Compliant Off Road Butt Form

SAE J1454 Compliant Off Road Butt Form is made of machined aluminum and can be provided with mounting holes, or fixtures to meet specific testing needs. The SAE J1454 Compliant Off Road Butt Form is suitable for use with our Jounce machines (with, or without squirm), IFD (UTM) machines, or other applications.

SAE J826 Butt Form with Rolled Hips

The SAE J826 Butt Form with Rolled Hips is in compliance with the American FMVSS, SAE J826 standard, and made of cast aluminum.

They are available with or without mounting brackets at an additional cost. These forms can be used in conjunction with other physical test systems such as Jounce, Ingress/Egress, IFD/ILD, and Fatigue Testers.

SAE J826 Compliant Back Form

SAE J826 Compliant Back Form conform to American standards for dimension, and are cast aluminum so that they are light weight. Brackets for mounting these forms are available either fixed or movable joints. The mounting holes and designed to match all of our seat testing equipment including 202a, FMVSS testers, fatigue, sequencer, Ingress/Egress, IFD, or Jounce Testers.

SAE J826 Compliant Butt Form

SAE J826 Compliant Butt Form conform to American standards for dimension, and are cast aluminum so that they are light weight. Brackets for mounting these forms are available either fixed or movable joints. The mounting holes and designed to match all of our seat testing equipment including 202a, FMVSS testers, fatigue, sequencer, Ingress/Egress, IFD, or Jounce Testers.

Also incorporated in these forms is the H-Point location, which is identified in the casting for positive location in your test set-up. This configuration does NOT have the rolled hips, which may be required for some special tests. Please see our SAE J826 Butt Form with Rolled Hips.

FAQ

1. What are these forms used for?

Back and Butt Forms are used to test seats, cushions, and protective surfaces under load, fatigue, or environmental conditions.

2. Can they simulate different human sizes?

Yes, forms like the 5th Percentile Female SAE Butt Form simulate small anthropometry, while other forms follow SAE, JSAE, or custom specifications.

3. Are heat or sweat modules available?

Yes, certain models like the JM50/J826 Butt Form support heat and sweat simulation for environmental testing.

4. How are they mounted to testing equipment?

They feature standard or customizable mounting holes and brackets, compatible with Jounce machines, IFD/UTM, Fatigue testers, and other test rigs.

5. How is long-term durability ensured?

Forms are made of cast or machined aluminum with periodic inspection recommended for fatigue, wear, and joint integrity.
