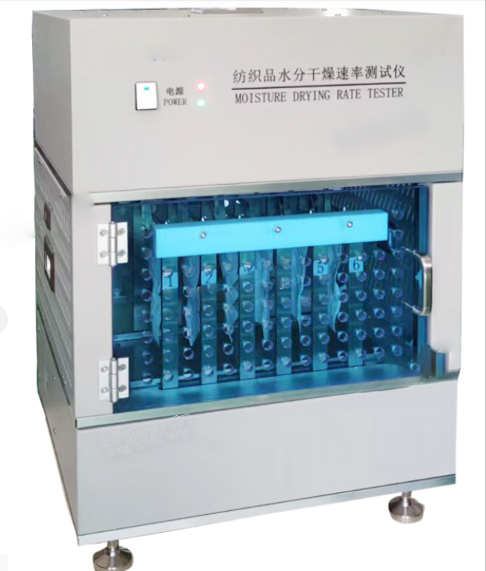

Textile water evaporation rate tester
Category：textile Functional tester
Introduction
Standard:
The design and operation of this tester are aligned with key international and national standards related to assessing the moisture management and drying characteristics of textiles, including:
AATCC Test Method 201
AATCC Test Method 199
AATCC Test Method 200
ASTM E96
Product Advantages:
This Textile Water Evaporation Rate Tester offers significant advantages for laboratories and manufacturers focused on textile performance:
Objective Performance Evaluation: Provides a quantitative and repeatable method for assessing quick-drying, eliminating subjective evaluations.
Simulates Real-World Conditions: Can simulate conditions similar to those experienced when moisture evaporates from fabric in contact with the skin or in specific environmental conditions.
High Accuracy and Repeatability: Utilizes precise measurement systems (e.g., sensitive balance, controlled environment) to ensure reliable and consistent test results.
Efficient Testing: Allows for relatively quick determination of drying rates compared to some other methods.
Data Analysis Capabilities: Often paired with software for real-time data acquisition, visualization of drying curves, and comprehensive report generation.
Scope of Application：
This instrument is used for testing and evaluating the moisture absorption and quick-drying performance of various textiles. The quick-drying property of textiles is assessed by measuring the rate of water evaporation.
Technical Parameters：
| Parameter | Specification |
|---|---|
| Sensor Accuracy | 0.001g |
| Sample Weight | < 100g |
| Sample Weighing Interval | ≥1 minute |
| Applicable Sample Size | 100mm × 100mm |
| Power Supply and Power | AC220V ± 10V, 50Hz, 200W |
| Instrument Dimensions (L×W×H) | 500 × 450 × 665mm |
| Instrument Weight | 40kg |
| Number of Workstations | 6 workstations (6 motors independently controlled) |
| Control Mode | Computer software upper computer control |
Instrument Features：
Equipped with imported high-precision balance, accuracy 0.001g.
Institutional self-locking function to prevent accidents after sudden power failure, ensuring safer use.
Uses high-quality drive motors for smooth operation and low noise.
Optimized structural design for precise positioning.
Can test up to 6 workstations simultaneously or select the number of workstations as needed.
Flexibly set the weighing interval time for experiments.
Test termination condition: evaporation rate change does not exceed 1%.
Automatically generates test result curves.
Automatically calculates evaporation rate, ensuring accurate test data.
