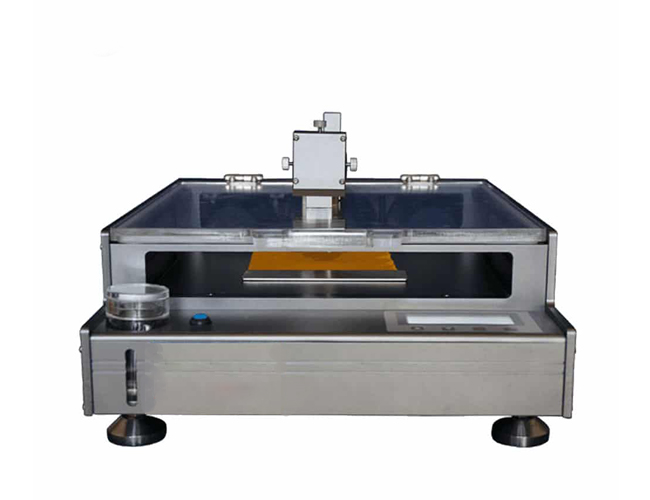

Introducing the Garment Fabric Wet Adhesion Performance Tester

Ensure your garments maintain their quality and performance even when wet with our Garment Fabric Wet Adhesion Performance Tester. This essential instrument is designed to accurately evaluate how well fabric layers or components bond and resist separation when exposed to moisture.

By simulating real-world conditions where garments might get wet (e.g., rain, sweat), our tester provides crucial data on the durability and integrity of seams, bonded layers, or applied elements. It’s an invaluable tool for quality control, product development, and research in the textile and apparel industry, helping you guarantee long-lasting garments that stand up to everyday use.

Application Scope

The garment fabric wet adhesion performance tester is used to evaluate the adhesion degree of clothing fabrics to human skin after being soaked in liquid.

Applicable Standards

1. T/CNGA 64-2024: “Test Method for Wet Adhesion of Garments”

2. FZ/T standard (Under review and pending release)

Technical Specifications

1. Evaluation system: Four-level wet adhesion performance grading system (Grade 1: Excellent, Grade 4: Poor)

2. Maximum load range: 300g

3. Force measurement range: 0.4%-100% FS

4. Measurement precision: 0.03% FS

5. Testing speed: 1-100mm/min

6. Maximum displacement: 80mm

7. Displacement precision: 10µm

8. Servo motor & driver: Panasonic

9. Dimensions: 545×419×509mm (W×D×H)

10. Power supply: AC 220V ±10%, 400W

11. Net weight: 25kg
