Thermal Insulation Materials Adhesive Strength Tester
Category：Material strength tester
Introduction
Meet the standard:
JGJ144-2004 “External Wall insulation engineering Technical Regulations”
JG158-2004 “Rubber powder polystyrene particles external insulation System”
JG149-2003 “Expanded polystyrene board thin plaster exterior wall External insulation System”
JGJ110-2008 “Inspection standard for adhesive strength of decorative bricks in construction engineering”
JG1126-2000 Rules for Construction and Acceptance of Exterior Wall Decorative Tiles
Product Introduction:

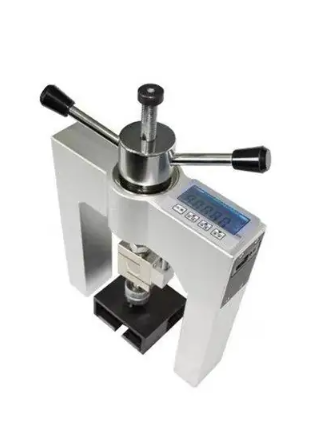

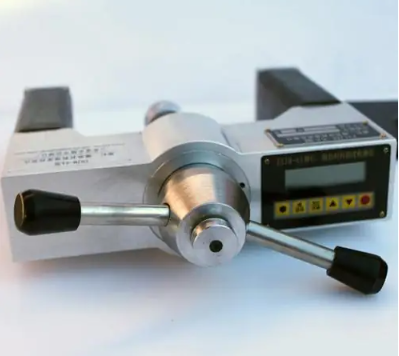

High-precision rivet drawing instrument products adopt S-type high-precision sensor, mechatronics design, a complete set of instruments
As a whole, the handle, S-type sensor, lead screw, reaction seat mechanical part constitutes a “door” is a structure, digital display table, can
Read tensile value (kN) and strength value (Mpa)， automatic calculation, peak retention, storage and query function, especially suitable
For laboratory and field use, the full set of detector has the characteristics of powerful function, light weight, labor-saving handle operation and simple.
Technical parameters:
| Parameter | Value |
|---|---|
| Product model | STD-6A |
| Instrument structure | integrated |
| Display mode | Force value KN/Strength value Mpa adjustable |
| Measuring range | 0-6.000KN/3.75Mpa |
| Resolution | 0.001KN |
| Test accuracy | 0.5%F.S |
| Peak holding, LCD lighting | Yes |
| Data storage | 500 |
| Value correction | 10 polylines |
| Power supply | high capacity lithium |
| Drawing stroke | 65mm |
| Theme material | Light alloy |
| Theme weight | 2.8Kg |
