Vacuum Cleaner Filter
Category：Filter Cartridge Filtration Tester
Introduction
Vacuum Cleaner Filters for emission characterisation of vacuum cleaners (EN 60312)
For emission tests the suction air is prepared with a dust concentration of 550 mg/m³ and passed directly into the hose of the vac.
For dust retaining tests the suction air is prepared with a dust concentration of 100 mg/m³ in the inlet channel (mixing tube) described in the standard.
Standard

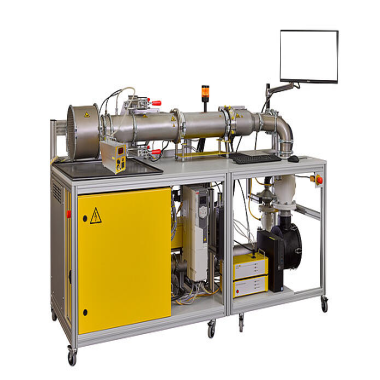

The Vacuum Cleaner Filters is designed for tests on vacuum cleaners (vac) for household or small business use according to the standard EN 60312.
Benefits
manual control for service, calibration procedures and user defined tests
automatic test procedures in accordance with standard EN 60312
emission test with determination of the average result and determination of a confidence limit
filtration efficiency test with determination of a confidence limit
dust-reemission tests according to Commission Delegated Regulation (EU) No. 665 / 2013; known as ‘Energy Label for Vacuum Cleaners’
Technical data
| Parameter title | Unit | Value |
|---|---|---|
| test flow rate | m³/h | 18 … 200 |
| power supply | – | 230 V AC; 50-60 Hz; 16 A |
| operating medium, gas/air | – | dry, particle-free compressed air |
| operating medium, gas/air – compressed air supply | bar | min. 5 (min. 5 m³/h) |
| dimensions (w × h × d) | mm | 2600 ×2500 × 850 |
| weight | kg | 350 |
Applications
determination of particle emission of the vacuum cleaner into the exhaust air
determination of the dust retaining capacity of the vacuum cleaner
Accessories
control Software VCTWin for Vacuum Cleaner Test Rig VCT 121 (Topas GmbH)
