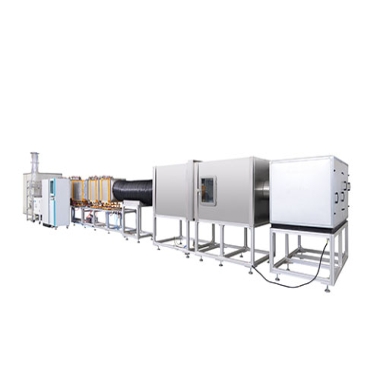

General Ventilation Filter Test Stand
Category：Filter Cartridge Filtration Tester
Introduction
Application
The Filter Test Platform is designed for testing air filters in compliance with European and international standards. It is suitable for:
Small and medium-sized enterprises requiring cost-effective filter testing solutions
Laboratory testing of filter initial resistance, flow resistance, and particle filtration efficiency
Quality control during production of air filters
Routine testing and reporting for research and development
It provides a compact and versatile solution for testing filters of various sizes and specifications while meeting international testing standards.
Standards Compliance
The platform is developed according to international standards:
EN 11155-1 – Air filter test methods
EN 779 – Particulate air filters for general ventilation
ISO 16890 – Air filter testing for general ventilation
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Adjustable test air volume | m³/h | 500 – 3500 |
| Test air volume error | % | ≤ ±3% |
| Resistance detection range | Pa | 0 – 500 |
| Repeatability of resistance test | Pa | 0–100 Pa ≤ ±2 Pa; >100 Pa ≤ ±3% |
| Aerosol substances | – | DEHS or KCl |
| Test particle size | µm | 0.3 |
Functional Advantages
Compact Design: Small footprint, simple installation, and easy operation
Versatile Fixture: Unique fixture design accommodates filters of various specifications
Automatic Control: Stable performance with automated testing, data storage, and report generation
Comprehensive Testing: Measures initial resistance, particle counting efficiency, and flow resistance curves
Data Management: Automatic report generation, storage, and printing for easy documentation
