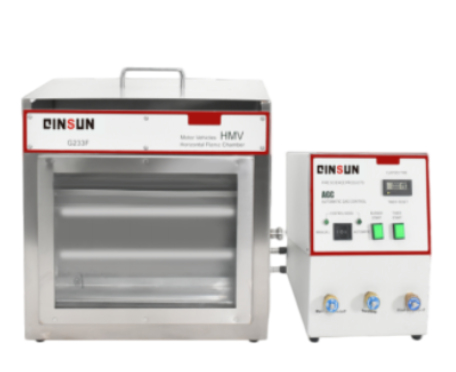

Automotive Interior Burning Tester
Category：Flammability Tester
Introduction
I. Product Introduction
The Automotive Interior Burning Tester is designed according to ISO3795 standards. Suitable for horizontal burning tests of interior materials in cars (sedans, multi-purpose vehicles, trucks and buses).
II. Instrument Features
Advanced industrial design with stainless steel chamber
Ventilation grid: 10 holes (Φ19mm), spaced 63.5mm horizontally × 127mm vertically
Burner inner diameter Φ9.5mm, flame distance 19mm from sample edge
Tempered glass observation window
Stainless steel sample holder and template included
Built-in steel ruler (1mm accuracy) for direct length measurement
Uses American Hamburg Bunsen burner (flame height 20-100mm)
Flame height measurement device (38mm standard)
Automatic ignition and timing functions
III. Technical Specifications
| Parameter Item | Specification |
|---|---|
| Dimensions | 200(W)×381(D)×356(H)mm |
| Power Supply | AC 220V, 50/60Hz, 10A |
| Weight | Approx. 50kg |
IV. Control System
Independent control box with ignition button, timer, and power switch
0.1s timing accuracy
Automatic flameout after 15s
Digital timer with automatic ignition
V. Compliance Standards
FMVSS 302
ISO 3795
GB/T8410-2006
SAE J369:2003
HESD6003-99 (Honda)
NESM0094:2003 (Nissan)
ES-X60410:2001 (Mitsubishi)
TRANS/WP29/78/Rev.1:1997 (EU)
TL1010:1997 (Volkswagen)
GS 97038-2003 (BMW)
GM 9070P:1996 (General Motors)
