Driveshaft Torsion & Fatigue Testing Machine
Category：Torsion Testing Machine
Introduction

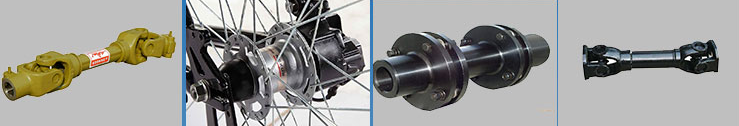

The Driveshaft Torsion & Fatigue Testing Machine is designed for torsion and torsional fatigue testing of automotive driveshafts, constant velocity joints, and related drivetrain components. The machine applies controlled torque or cyclic torsional loading while measuring torque, torsion angle, speed, and test cycles. Test data and torque-angle curves can be recorded, analyzed, stored, and exported for product development and quality control.
Application
The machine is suitable for:
(1) Automotive driveshafts and propeller shafts
(2) Constant velocity joints (CV joints)
(3) Drivetrain and transmission components
(4) Static torsion strength testing
(5) Torsional stiffness and failure testing
(6) Torsional fatigue and cyclic loading tests
(7) Automotive component development and quality inspection
Standards
(1) GB/T 2611 — General requirements for testing machines
The applicable test standards can be selected according to the driveshaft type, test method, torque range, fatigue requirements, and customer specifications.
Parameters
| Parameter | Specification |
|---|---|
| Maximum Test Torque | 100 / 200 / 500 / 1000 / 2000 / 5000 / 10000 Nm+, customizable |
| Test Stroke | 300–3000 mm; customizable |
| Testing Machine Class | Class 0.5 / 1 |
| Torque Measurement Range | 1%–100% FS |
| Torque Minimum Resolution | 0.01 / 0.1 Nm |
| Angle Resolution | 0.01° |
| Maximum Torsion Angle | 0–Unlimited |
| Torsion Speed | 0.1–720°/min, customizable |
| Angle Indication Error | < ±0.5% |
| Angle Repeatability Error | < 0.5% |
| Torque Indication Error | < ±0.5% |
| Torque Repeatability Error | < 0.5% |
| Speed Accuracy | Better than ±1% of indication |
| Torsion Direction | Configurable according to test requirements |
| Test Fixtures | Standard fixture set; customizable |
| Appearance | Complies with GB/T 2611 |
| Power Supply | AC 220 V, 50 Hz |
Note: Fatigue-testing parameters such as test frequency, cycle count, waveform, load control mode and fatigue torque range should be confirmed according to the customer’s specific test method. They should not be treated as fixed specifications unless the corresponding configuration is provided.
Features
(1) Static and Fatigue Testing – Supports static torsion and cyclic torsional testing when equipped with the corresponding fatigue control system.
(2) Wide Torque Capacity – Available from 100 Nm to more than 10000 Nm for different driveshaft and drivetrain applications.
(3) Adjustable Test Space – The fixture spacing can be adjusted for different driveshaft lengths and specimen configurations.
(4) Accurate Data Acquisition – Continuously records torque, torsion angle, speed and other test data.
(5) Multiple Test Curves – Displays torque-time, angle-time and torque-angle curves for test analysis.
(6) Computerized Control – Test parameters can be configured through the control system, with automatic data recording and report generation.
(7) Customizable Fixtures – Fixtures can be designed according to driveshaft diameter, spline structure and connection configuration.
