Pulley Torsion Testing Machine
Category：Torsion Testing Machine
Introduction
The Pulley Torsion Testing Machine is mainly used for torsional mechanical performance testing of various pulleys, such as vibration damper pulleys. The tested pulley is installed between fixtures with adjustable spacing, allowing the machine to accommodate torsion testing of pulleys with different specifications.
The machine features a Chinese-language display interface for easier operation and system parameter setting. It uses an AC servo motor and precision reducer for transmission, providing uniform and stable loading without impact, as well as accurate data acquisition and control. The machine can generate a detailed A4 paper test report with test curves.
Application

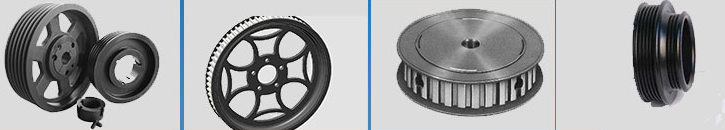

The Pulley Torsion Testing Machine is mainly used for torsional mechanical performance testing of:
(1) Vibration damper pulleys
(2) Crankshaft pulleys
(3) One-way pulleys
(4) Washing machine pulleys
(5) Other pulley components
Standards
GB/T 2611 — General Requirements for Testing Machines
Parameters
| Parameter | Specification |
|---|---|
| Maximum Test Torque | 100, 200, 500, 1000, 2000, 5000, 10000 N·m |
| Test Travel | 300 / 500 mm |
| Testing Machine Class | Class 0.5 |
| Torque Measurement Range | 1%–100% FS |
| Torque Minimum Resolution | 0.01 / 0.1 N·m |
| Angle Resolution | 0.01° |
| Maximum Torsion Angle | 0–Unlimited |
| Test Speed | 0.1–720°/min, customizable |
| Angle Indication Error | < ±0.5% |
| Angle Repeatability Error | < 0.5% |
| Test Force Indication Error | < ±0.5% |
| Test Force Repeatability Error | < 0.5% |
| Test Speed Accuracy | Better than ±1% of indicated value |
| Appearance | Complies with GB/T 2611 requirements |
| Torque Loading Direction | Both directions |
| Torsion Fixtures | Standard set |
| Power Supply | 220 V, 50 Hz |
| Applicable Products | Vibration damper pulleys, crankshaft pulleys, one-way pulleys, washing machine pulleys, etc. |
Features
(1) Adjustable Fixture Space – The fixture spacing can be adjusted for different pulley specifications.
(2) Chinese Display Interface – The interface provides operation prompts for convenient system parameter setting.
(3) Stable Loading – The AC servo motor and precision reducer provide uniform and stable loading without impact.
(4) Accurate Data Acquisition – The system provides accurate data acquisition and control during testing.
(5) Bidirectional Torque Loading – Torque can be applied in both directions.
(6) Curve Test Report – The machine can provide a detailed A4 paper test report with test curves.
