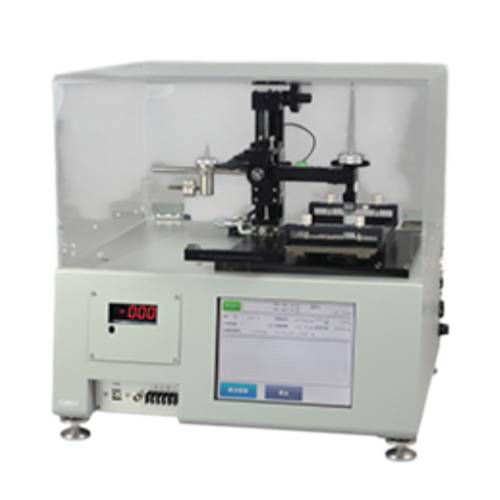

Wide-Range Load Friction and Wear Testing Machine
Category：Abrasion Tester
Introduction
The Wide-Range Load Friction and Wear Testing Machine is a versatile tribological test system designed to evaluate friction and wear behavior under an exceptionally wide load and speed range. By combining low-load high-sensitivity testing with stable high-load capability, the system enables comprehensive assessment of materials, lubricants, and surface treatments under conditions close to real operating environments.
Application
This testing machine is suitable for a wide range of friction and wear evaluations, including:
Friction and wear testing of automotive components
Performance evaluation of bearing materials and sealing materials
Friction and wear characterization of lubricating materials
Comparative testing of various surface-treated and coated materials
Typical test samples include:
Automotive friction components
Bearing alloys and composite materials
Sealing materials and polymers
Surface-treated metals and coatings
Lubricants used under different load and speed conditions
Standards
The system supports test methods commonly referenced in international tribology standards, including:
ASTM G99 (Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus)
ASTM G133 (Linearly Reciprocating Ball-on-Flat Sliding Wear)
ISO 7148 (Plain Bearings — Testing of Friction and Wear)
JIS K 7218 (Testing Methods for Plastic Tribological Properties)
Parameters
| Parameter | Specification |
|---|---|
| Load range | 20 g to 100 kg |
| Low-load method | Balance arm loading (20 g to 10 kg) |
| High-load method | Lifting-type weight loading (10 kg to 100 kg) |
| Rotational speed | 30 to 3000 rpm |
| Test mode | Rotational friction and wear testing |
| Measurement methods | Torque meter or force load cell (selectable) |
Features
Extremely wide load range from very low loads to high loads within a single system
High-sensitivity balance arm ensures accurate measurement in low-load testing
Stable lifting-type weight loading structure enables safe high-load application
Rotating table design optimized for wear testing from low to high speeds
Capable of accelerated wear testing under high load and high speed
Compatible with various wear test configurations through optional accessories
Suitable for lubricant testing and high-temperature wear testing when equipped with optional devices
Accessories
(1) Control frame
(1) Ball indenter, 5 mm diameter
(1) Ball indenter, 10 mm diameter
(1) Ring-type loading weights
(1) Tool set (Phillips screwdriver, flathead screwdriver, wrench)
(1) Parts storage box
(1) Power cable
(1) Ground wire
(1) Operating manual
Maintenance Information
Clean the rotating table and contact components after each test
Inspect loading mechanisms and balance arms regularly
Verify load accuracy and sensor performance periodically
Keep moving parts properly lubricated as specified
Store the instrument in a clean, dry environment
FAQ
1. What is the core advantage of this product?
Its exceptionally wide load range allows both ultra-low-load and high-load friction and wear testing using a single instrument.
2. Are the test results reliable?
Yes. Stable loading mechanisms, selectable measurement methods, and optimized rotational design ensure consistent and repeatable results.
3. Which international or industry standards does it comply with?
The machine supports tribological test methods aligned with ASTM, ISO, and JIS standards.
4. Why is this product important?
It enables realistic simulation of a broad range of operating conditions, supporting accurate material selection and durability evaluation.
5. Which fields is this product suitable for?
It is suitable for automotive engineering, bearing and seal development, lubricant research, surface engineering, and tribology laboratories.
