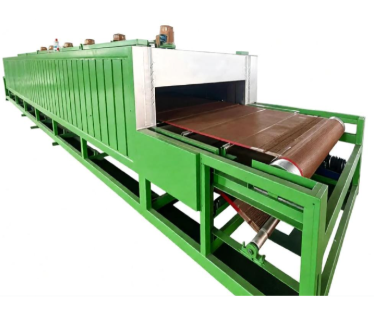

Composite Fiber Material Tunnel Furnace
Category：Tunnel Oven Production Line
Introduction
The composite fiber material tunnel furnace is a high-efficiency industrial heating equipment specially designed for continuous curing, drying, and thermal processing of composite materials such as carbon fiber and glass fiber.
Applications
Material Curing:
Used for curing composite material matrices of carbon fiber and glass fiber.
Automotive Manufacturing:
Used for drying lightweight composite vehicle body components and interior parts.
Aerospace:
Used for high-precision thermal processing of structural components and honeycomb sandwich panels.
Wind Turbine Blades:
Used for continuous heating of blade root sections and reinforcement materials.
Sporting Goods:
Used for heating and molding products such as rackets, fishing rods, and bicycle frames.
Parameters
| Parameter Item | Technical Specification |
|---|---|
| Temperature Range | Room temperature to 400℃ (customized according to process requirements) |
| Temperature Control Accuracy | ±1℃ |
| Furnace Temperature Uniformity | ±3℃ to ±5℃ |
| Conveyor Speed | 0.1–5 meters/minute (variable frequency speed regulation) |
| Conveyor Belt Material | Teflon mesh belt, stainless steel mesh belt, or chain conveyor |
| Heating Power Source | Electric heating, natural gas, or infrared radiation heating |
Features
Precise Temperature Control:
Adopts multi-zone independent microcomputer PID regulation to achieve accurate temperature control.
Uniform Heating:
The hot air circulation system ensures consistent heating across the material surface.
High Efficiency and Energy Saving:
The high-density rock wool insulation layer effectively reduces heat loss and improves energy efficiency.
Intelligent Conveying:
The transmission system operates smoothly, and the speed supports digital adjustment.
Safety and Explosion Protection:
Equipped with an automatic exhaust system and over-temperature power-off protection.
