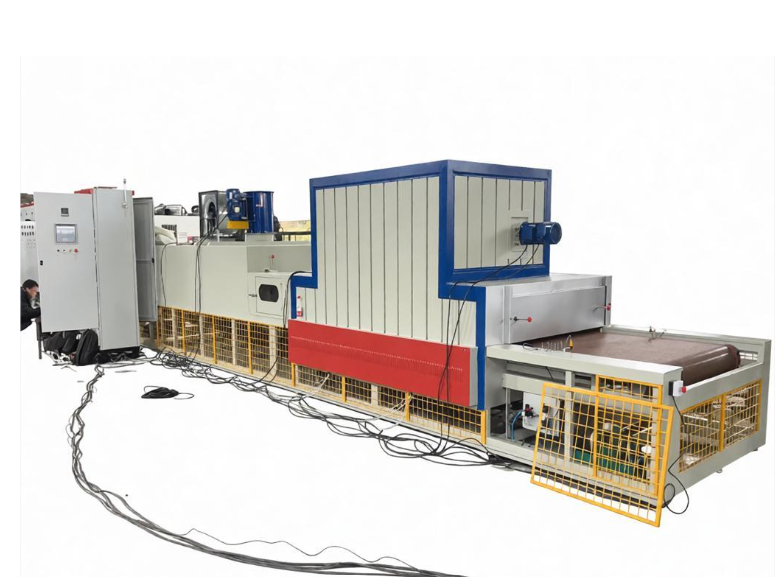

Curing Tunnel Oven
Category：Tunnel Oven Production Line
Introduction
The Curing Tunnel Oven is a continuous heating system designed for drying and curing processes in industrial production. It adopts a conveyor-based tunnel structure with multi-zone temperature control, enabling stable and consistent processing of products. The equipment is suitable for applications requiring controlled heating conditions and continuous workflow.
Application
The Curing Tunnel Oven is widely used in industries requiring thermal curing and drying processes, including:
(1) Coating and painting curing processes.
(2) Adhesive and resin curing applications.
(3) Electronic components drying and heat treatment.
(4) New material processing and thermal forming.
(5) General industrial product drying lines.
Standards
The equipment can be designed in accordance with relevant industrial and safety standards:
(1) GB/T 10067 Basic Technical Requirements for Industrial Electric Heating Equipment
(2) GB/T 30435 Energy-saving Monitoring Methods for Industrial Heating Equipment
(3) General electrical safety and manufacturing standards
Parameters
| Item | Specification |
|---|---|
| Equipment Type | Curing Tunnel Oven |
| External Size | L5600 × W1200 × H1800 mm |
| Heating Zone Length | 4600 mm |
| Loading/Unloading Area | 500 mm each side |
| Inner Chamber Size | L4600 × W800 × H650 mm |
| Conveyor Width | 750 mm |
| Temperature Zones | 2 zones with independent control |
| Temperature Range | Room temperature ~ 200℃ |
| Temperature Uniformity | ±5℃ (no-load, constant condition) |
| Temperature Control Accuracy | ±1℃ |
| Heating Rate | 5℃/min |
| Air Circulation | Forced hot air circulation (side and bottom) |
| Power Supply | 380V, 50Hz, three-phase five-wire |
| Heating Element | Stainless steel finned heating tube (304) |
| Total Power | Approx. 45KW |
Features
(1) Continuous conveyor design for stable production flow.
(2) Independent temperature zones for flexible process control.
(3) Forced hot air circulation improves heating consistency.
(4) Suitable for various curing and drying applications.
(5) Simple operation with stable performance.
(6) Compact structure, easy to integrate into production lines.
