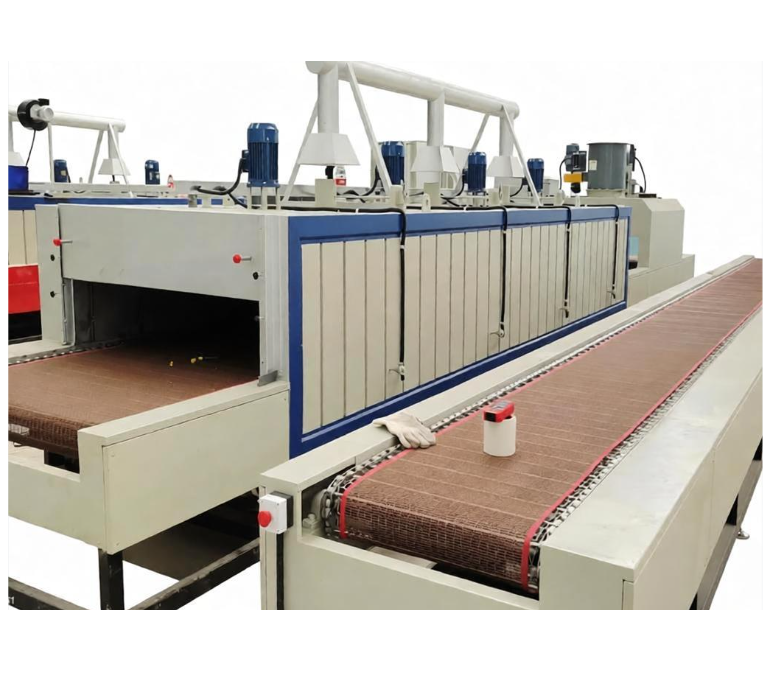

Fabric Moisture Drying Tunnel Furnace
Category：Tunnel Oven Production Line
Introduction
The Fabric Moisture Drying Tunnel Furnace is a high-efficiency continuous drying system that utilizes infrared heating, hot air circulation, or microwave technology.It is specially designed for industries such as textiles, printing and dyeing, and nonwoven fabric manufacturing. Through a conveyor system, wet fabrics are continuously transported into the constant-temperature drying tunnel, where moisture is rapidly and evenly evaporated to achieve automated continuous drying production.
Applications
Post-Dyeing Drying:
Used for moisture evaporation and color fixation after fabric dyeing and printing processes.
Coating Curing:
Used for heating, drying, and curing surface coatings, waterproof layers, and adhesive coatings on fabrics.
Fabric Setting:
Combined with tentering and heat-setting processes, it removes internal fabric stress and evaporates excess moisture.
Nonwoven Fabric Production:
Used for hot pressing and drying processes during nonwoven fabric manufacturing.
Product Parameters
| Parameter | Technical Specifications |
|---|---|
| Furnace Length | 6m – 24m (Customized according to production capacity) |
| Conveyor Belt Width | 1000mm – 3200mm |
| Heating Methods | Electric heating / Natural gas / Steam / Microwave |
| Working Temperature | Room temperature – 250℃ (Adjustable and controllable) |
| Conveyor Speed | 0.5m/min – 20m/min (Variable frequency speed control) |
| Temperature Control Accuracy | ±1℃ – ±3℃ |
Features
Uniform Drying:
Adopts multi-zone independent temperature control and hot air circulation systems to ensure consistent heating of both fabric surfaces and internal layers.
High Efficiency and Energy Saving:
High-density insulation materials combined with a hot air recovery system significantly reduce heat loss and energy consumption.
Variable Frequency Speed Control:
The conveyor system uses variable frequency control, allowing precise adjustment of conveying speed according to different fabric thicknesses and moisture contents.
Intelligent Operation:
PLC touch screen centralized control supports temperature curve setting, over-temperature alarm, and automatic power-off protection functions.
