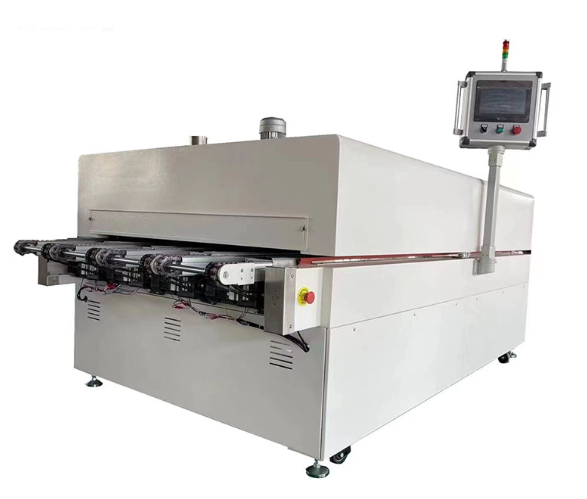

Infrared Tunnel Oven
Category：Tunnel Oven Production Line
Introduction
The Infrared Tunnel Oven is a continuous heating system that uses infrared radiation as the primary heating method. It is designed for fast surface heating and efficient drying or curing processes. With multi-zone temperature control and integrated cooling sections, the equipment supports stable and continuous production, especially for precision industrial applications.
Application
The Infrared Tunnel Oven is widely used in:
(1) Automotive parts drying and curing.
(2) Electronic and semiconductor processing.
(3) Optoelectronic product manufacturing.
(4) New energy material processing.
(5) Glass and precision hardware treatment.
(6) Silicone and medical device production.
Standards
The equipment can comply with:
(1) GB/T 10067 Industrial Heating Equipment Technical Requirements
(2) GB 5226 Electrical Safety of Machinery
(3) General industrial oven and safety standards
Parameters
| Item | Specification |
|---|---|
| Equipment Type | Infrared Tunnel Oven |
| Heating Section Size | L5000 × W1370 × H1300 mm |
| Heating Zone Length | 4500 mm |
| Inner Chamber Size | L4500 × W970 × H440 mm |
| Cooling Section Size | L5000 × W1370 × H1130 mm |
| Cooling Zone Length | 7200 mm |
| Loading/Unloading Length | 500 mm each |
| Transition Section | 300 mm |
| Fixture Size | 180 × 180 mm |
| Temperature Zones | 3 independent zones |
| Temperature Range | Room temperature ~ 250℃ |
| Working Temperature | Approx. 200℃ |
| Temperature Uniformity | ±5℃ |
| Temperature Accuracy | ±1℃ |
| Heating Rate | ≥5℃/min |
| Air Circulation | Horizontal forced air circulation |
| Heating Method | Infrared heating tubes |
| Heating Power | Approx. 20KW |
| Total Power | Approx. 30KW |
| Power Supply | 380V, 50Hz, three-phase five-wire |
Features
(1) Infrared heating provides fast response and efficient heating.
(2) Multi-zone control supports flexible process settings.
(3) Integrated cooling section improves production efficiency.
(4) Suitable for precision and sensitive materials.
(5) Continuous conveyor design for stable operation.
(6) Easy to customize for different production needs.
