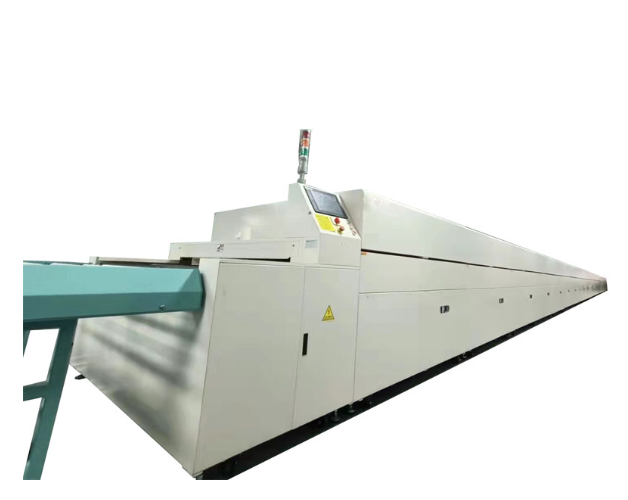

The Mesh Screen Curing and Drying Tunnel Oven is an industrial continuous thermal processing equipment. It mainly uses a conveyor system (usually a stainless steel mesh belt or specially designed screen mesh) to continuously transport materials into the heating tunnel, where moisture drying, coating curing, or thermal treatment is carried out under controlled temperature, airflow speed, and processing time.

Applications

Screen Printing Industry

Used for drying and curing inks after printing on various products, including nameplates, membrane switches, and textile printing materials.

Electronic and Electrical Industry

Used for infrared curing of electronic components after PCB assembly, adhesive curing, and drying of insulating coatings.

Hardware Coating Industry

Used for heating and baking surface coatings of metal parts, including spray coatings, paint finishes, and Teflon (PTFE) coatings.

New Energy Battery Industry

Used for drying battery electrode sheets after coating processes and dehydration treatment of related materials.

Standards

The design and manufacturing of the equipment generally comply with the following standards:

GB/T 30790

Protective paint systems for corrosion protection of steel structures.

GB 5226.1

Electrical safety of machinery — Electrical equipment of machines, Part 1: General requirements.

GB 20050

Safety requirements for high-frequency heating equipment (applicable when high-frequency or microwave-assisted heating technology is involved).

ISO 9001

The entire design and manufacturing process should comply with quality management system requirements.

Features

Continuous and High-Efficiency Operation

The mesh belt conveyor system enables continuous production and is suitable for large-scale automated manufacturing.

Precise Temperature Control

Adopts PID intelligent microcomputer temperature control technology combined with multiple independent heating zones, ensuring low temperature variation inside the oven.

Excellent Air Permeability

The mesh belt structure allows hot air to penetrate through the bottom of the materials, achieving more uniform heating and drying.

Energy Saving and Environmental Protection

Equipped with a hot air circulation system to significantly reduce energy consumption, along with an exhaust gas discharge system to remove process emissions.
