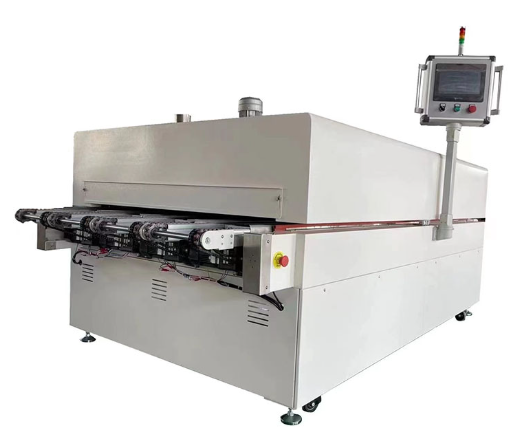

Microwave Tunnel Oven
Category：Tunnel Oven Production Line
Introduction
The Microwave Tunnel Oven is a continuous industrial drying and heating system that uses microwave energy as the primary heat source. It is designed for fast and efficient material drying, combined with a conveyor system for continuous processing. Compared with traditional heating methods, microwave heating provides faster penetration and uniform internal heating, improving production efficiency while maintaining product quality.
Application
The Microwave Tunnel Oven is widely used in industries requiring rapid drying and heating processes, including:
(1) Biomedical material drying and sterilization.
(2) Chemical product drying and processing.
(3) Textile material drying.
(4) Food and agricultural product drying.
(5) Rubber vulcanization and related applications.
Standards
The equipment can be designed according to relevant industrial and safety standards:
(1) GB/T 10067 Industrial Heating Equipment Technical Requirements
(2) GB 5226 Electrical Safety of Machinery
(3) General microwave equipment safety standards
Parameters
| Item | Specification |
|---|---|
| Equipment Type | Microwave Tunnel Oven |
| External Size | 11650 × 1320 × 1680 mm |
| Inlet/Outlet Height | 52 mm |
| Conveyor Width | 680 mm |
| Conveyor Speed | 0.1 ~ 5 m/min |
| Power Supply | 380V ±10%, 50Hz ±1%, three-phase five-wire |
| Microwave Frequency | 2450 MHz ±50 Hz |
| Input Power | ≤45 kVA |
| Microwave Output Power | 30 kW (adjustable) |
| Working Environment | 0 ~ 50℃, RH ≤80% |
| Drying Capacity | Approx. 30 kg/hour |
Features
(1) Microwave heating for fast and efficient drying.
(2) Continuous conveyor design for stable production.
(3) Combined hot air system improves drying effect.
(4) Helps maintain original color and shape of materials.
(5) Suitable for various industries and materials.
(6) Integrated cooling and safety protection systems.
