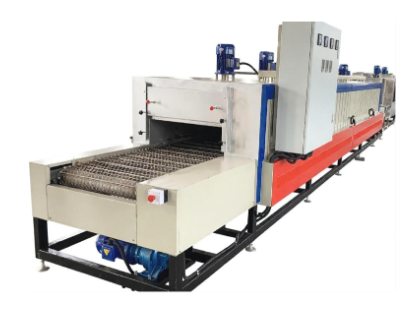

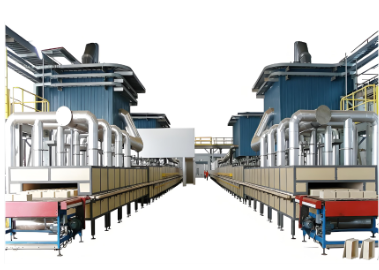

Production Line Drying System
Category：Tunnel Oven Production Line
Introduction
The Production Line Drying System is an industrial continuous drying equipment that transports materials into the drying chamber through a conveyor system. During continuous movement, the materials undergo heating and moisture evaporation, achieving efficient, large-scale, and automated production.
Applications
Electronic and Electrical Industry:
Used for PCB curing, drying of electronic component adhesives, and screen printing ink drying.
Hardware and Plastic Products:
Used for drying coatings on automotive parts, surface moisture removal of electroplated components, and spray coating drying of plastic housings.
Food Processing Industry:
Used for dehydration of agricultural products, baking of snack foods, and surface moisture drying of packaging bags.
Pharmaceutical and Chemical Industry:
Used for drying tablet coatings, drying chemical raw material powders, and heating and curing of various materials.
Product Parameters
| Parameter Item | Common Specification Range / Technical Indicators |
|---|---|
| Conveyor Speed | 0.1 – 15 m/min (variable frequency speed regulation) |
| Working Temperature | Room temperature – 250℃ (maximum customizable up to 500℃) |
| Heating Method | Electric heating (infrared / quartz tube), gas heating, steam heating, microwave heating |
| Conveyor Belt Material | Teflon mesh belt, stainless steel mesh belt, PVC belt, roller conveyor, chain conveyor |
| Temperature Control Accuracy | ±1℃ – ±3℃ (PID microcomputer intelligent control) |
| Equipment Length | 3 m – 30 m (customized according to production capacity and process requirements) |
Features
Highly Efficient Automation:
Can be integrated with upstream and downstream production lines to achieve fully automatic continuous operation including feeding, drying, cooling, and discharge.
Highly Precise Temperature Control:
Uses a PID segmented independent temperature control system. The hot air circulation inside the chamber ensures uniform heating and prevents local overheating.
Excellent Energy-Saving Performance:
The high-density rock wool insulation layer combined with hot air circulation design significantly reduces heat loss, achieving more than 20% overall energy savings.
Stable Operation:
Driven by a variable frequency speed control system, the conveyor runs smoothly with minimal vibration, ensuring materials remain stable during the drying process.
Flexible Customization:
The equipment length, conveyor width, and heating source can be customized according to factory space, material characteristics, and production capacity requirements.
