Wood Drying Tunnel Furnace
Category：Tunnel Oven Production Line
Introduction

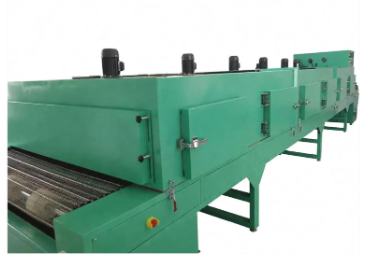

The Wood Drying Tunnel Furnace is an industrial-grade continuous drying equipment. It adopts a tunnel-type structure and uses circulating hot air, microwave, infrared radiation, or other heating methods to uniformly heat and dehydrate wood materials transported through the conveyor system.The equipment enables continuous production-line wood drying operations, effectively preventing cracking, deformation, and discoloration during the drying process, while significantly improving drying efficiency and wood quality.
Applications
Solid Wood Furniture:
Used for drying various solid wood boards, panels, and furniture components.
Wood Flooring:
Used to stabilize and control the moisture content of composite flooring and solid wood flooring materials.
Construction Timber:
Used for drying structural timber, wooden beams, and wooden pallets used in construction projects.
Wooden Crafts:
Used for precision drying of musical instruments, stationery products, wooden sculptures, and various decorative wooden items.
Product Parameters
| Parameter Item | Technical Specification (Customizable According to Customer Requirements) |
|---|---|
| Equipment Length | 10 m – 50 m |
| Conveyor Belt Width | 800 mm – 2500 mm |
| Working Temperature | Room Temperature – 150℃ (Adjustable) |
| Heating Energy Source | Electricity / Steam / Natural Gas / Biomass Pellets |
| Operating Speed | 0.1 – 5 m/min (Variable Frequency Speed Regulation) |
| Temperature Control Accuracy | ±1℃ |
| Structural Material | Carbon steel painted exterior / Stainless steel inner chamber / High-density rock wool insulation |
Features
Continuous Operation:
Material feeding, drying, and discharge are completed through a continuous production line, providing high production efficiency.
Excellent Temperature Uniformity:
The forced hot air circulation system ensures uniform heat distribution both inside and outside the wood material.
Intelligent Temperature Control:
The PLC automatic control system accurately regulates temperature, humidity, and conveyor speed to achieve precise drying processes.
Energy Saving and Environmental Protection:
Equipped with heat recovery functions, while the high-density insulation layer effectively reduces heat loss.
Quality Assurance:
The scientific drying process effectively prevents wood cracking, internal stress, and deformation, ensuring stable product quality.
